A sound system is an important supporting part of many mobile stage projects, especially for concerts, festivals, public events, church activities and brand promotions. From a mobile stage manufacturer's perspective, the key is not to design the professional audio system itself, but to ensure that the equipment can be properly integrated with the mobile stage.
Speaker installation, equipment weight, mounting positions, power connections and transportation requirements can all influence the final stage configuration.
Some customers already have their own sound equipment and audio supplier, while others need the sound system supplied together with the mobile stage.
If the equipment has already been selected, specifications such as speaker dimensions, quantity, weight and installation position help the manufacturer determine the required structural and installation arrangements.
This is particularly important when speakers will be suspended from the mobile stage structure.
If the sound system has not yet been selected, the project can instead be planned according to the intended event application and expected equipment arrangement.
The installation method determines how the speakers interact with the mobile stage.

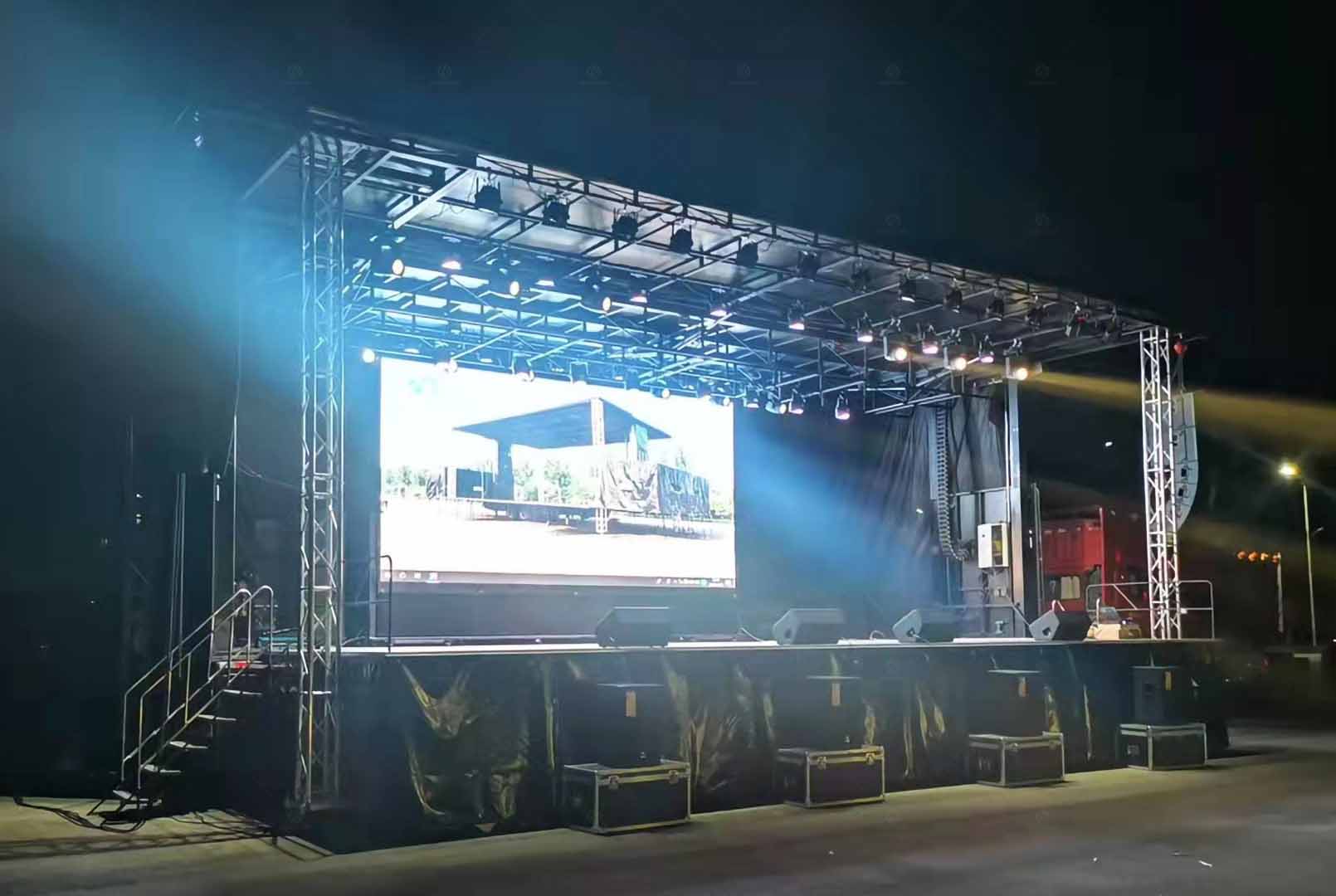

Ground-supported speakers are normally positioned beside or in front of the stage. Their placement should be coordinated with stairs, support legs, audience access and other equipment around the deployed stage.

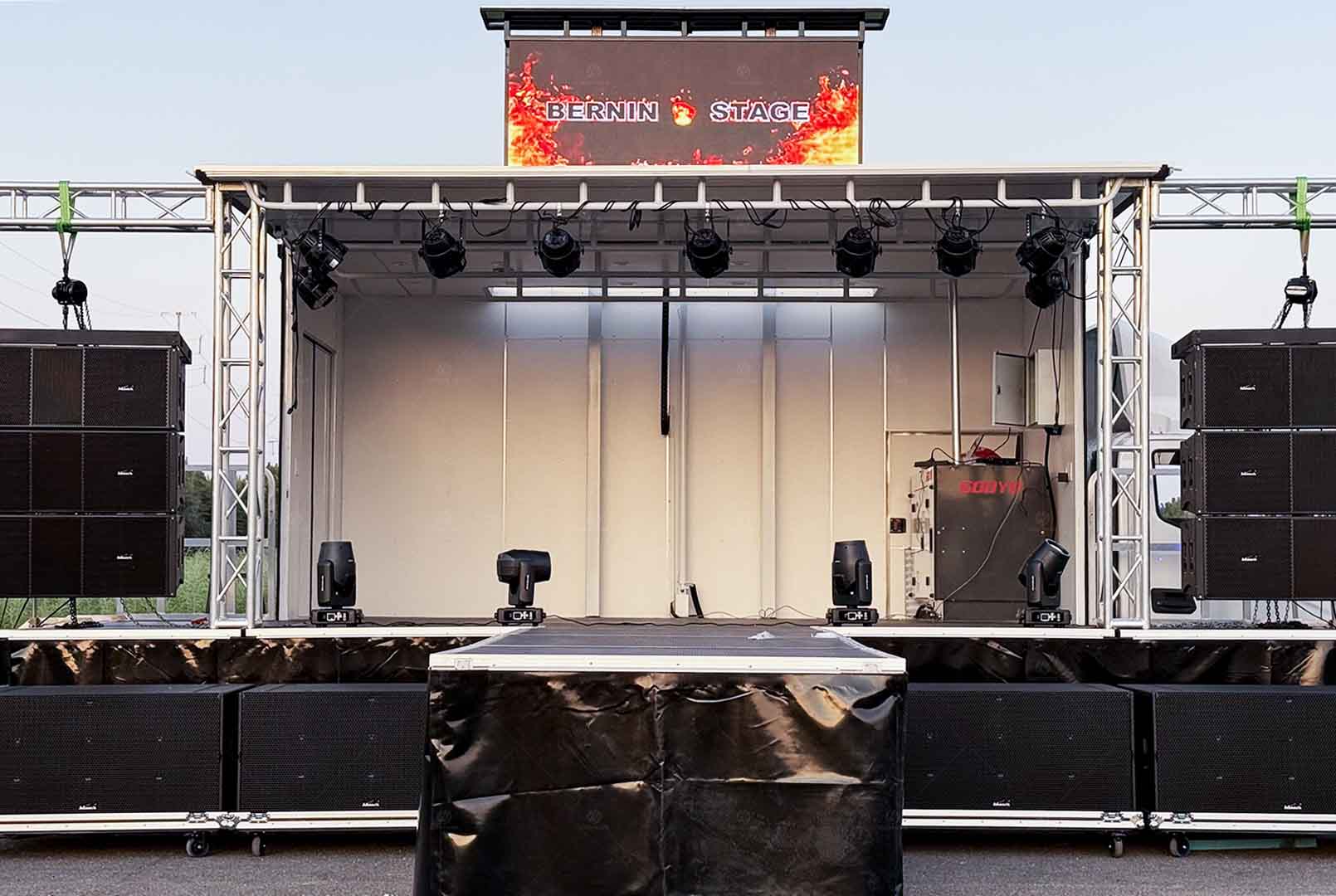

Suspended speakers require additional structural consideration. The planned speaker weight and installation position must be checked against the structural design and permitted loading of the specific mobile stage.
Different mobile stage models have different structures and load conditions, so allowable loads should always be confirmed for the actual equipment arrangement.
For suspended equipment, total weight is not the only consideration. The position of the load also matters.
A mobile stage roof may support lighting fixtures, LED equipment and speakers at the same time. These loads therefore need to be considered together.
For customers with an existing sound equipment plan, useful information includes:
HUAYUAN can use this information to coordinate the mobile stage structure and equipment arrangement. All suspended equipment must remain within the approved structural and loading limits of the specific stage.
The selected sound equipment also affects power and signal connections.
Speaker positions, audio equipment racks and related devices should be considered when planning power outlets and cable routes. This can make on-site connections more convenient and reduce cables crossing operational areas.
The overall power supply should be determined according to the complete mobile stage configuration, including LED displays, lighting, sound equipment and other electrical loads.
Unlike a fixed stage, a mobile stage also needs to consider equipment during transportation.
If speakers, cables or other audio equipment will travel with the mobile stage, their dimensions, weight, access and storage requirements should be included in the vehicle or trailer layout.
This is particularly important for customers who want an integrated mobile event solution, because equipment storage can affect the space available for other stage systems.
Customers do not need to arrive with a complete professional audio specification.
If you already have an audio supplier, HUAYUAN can coordinate the mobile stage according to their equipment and installation requirements.
If you do not have a sound system plan, provide basic information such as the event type, venue, expected audience and intended use. HUAYUAN works with long-term professional audio equipment partners who can recommend suitable equipment for the project.
The sound system can then be coordinated with the mobile stage, LED display, lighting system and other supporting equipment as part of the complete solution.
Sound equipment is one part of a complete mobile stage system, but its installation, load, connections and transportation requirements can influence the overall design.
Whether the audio equipment is supplied by the customer or included in the HUAYUAN solution, confirming these requirements during project planning helps ensure that the sound system and mobile stage work together as intended.
