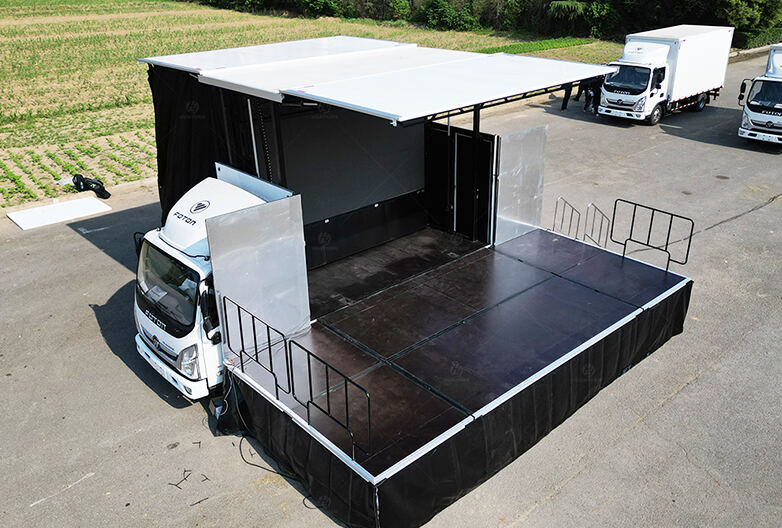

After deployment, the stage size is 6.8 × 8 m, about 54 m², suitable for community events and small performances.
1–2 people can complete the changeover from transport mode to stage-ready status in about 30 minutes. The main stage and roof movements are hydraulically driven and support remote-control operation.
The LED screen rises with the roof and then flips down into position, reducing on-site installation work.
Lighting and audio systems can be matched according to the project. We provide corresponding configuration recommendations.

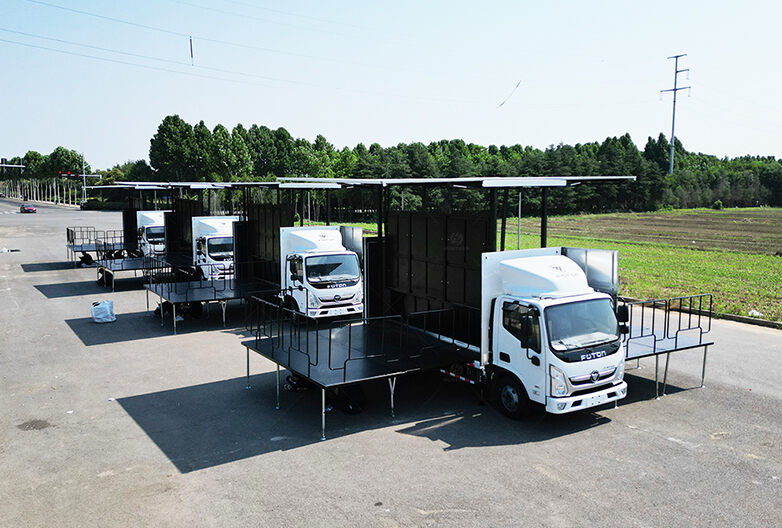

T135 stores the stage, roof, and display system inside the enclosed body during transport.
After arrival, deployment is completed through the hydraulic system and remote control. By following the operating sequence, the stage can move directly into equipment setup and event preparation.

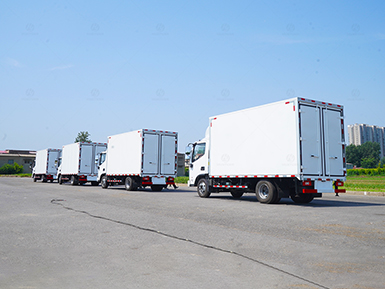

The stage platform, roof structure, and onboard components are stored together inside the body when closed.
The main stage and roof structures remain integrated with the vehicle body, reducing separate structural assembly on site. The team can move directly into the deployment process.

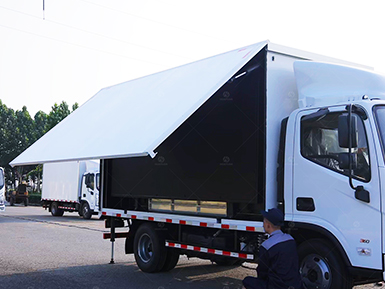

Stage deployment and retraction are driven by the hydraulic system and completed by remote-control operation.

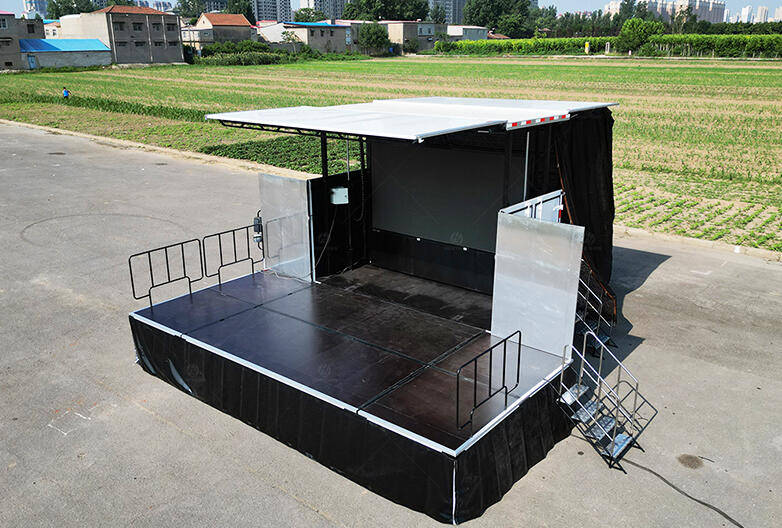

After basic deployment, the stage size is 6.8 m × 8 m, suitable for small event layouts, with reserved space for lighting and audio.

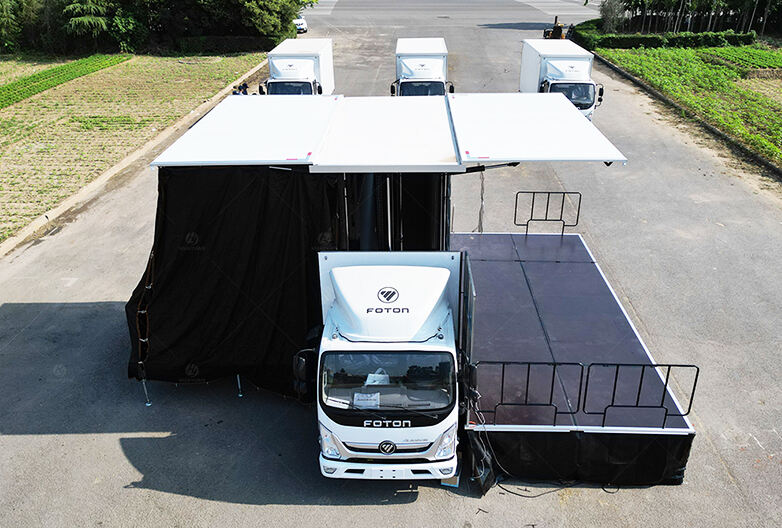

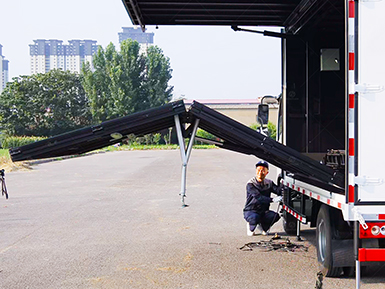

The stage uses a double-folding structure. Deployment and retraction are completed by the hydraulic system.
The movement is easier to observe and supports step-by-step control of on-site safety.

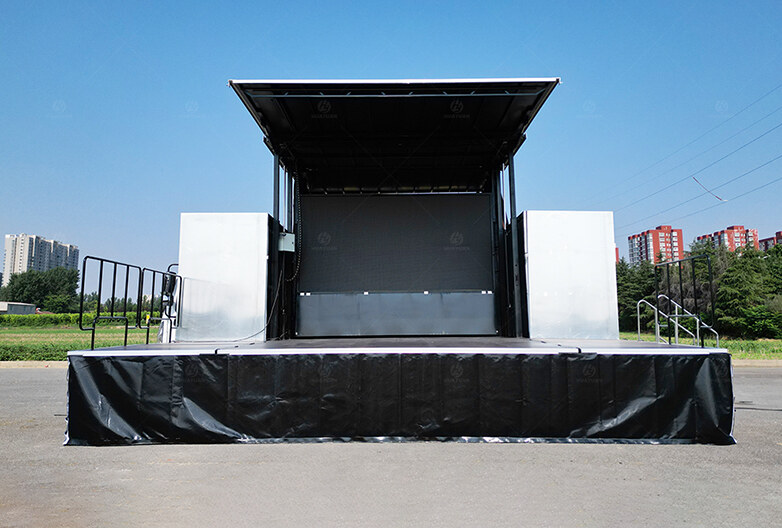

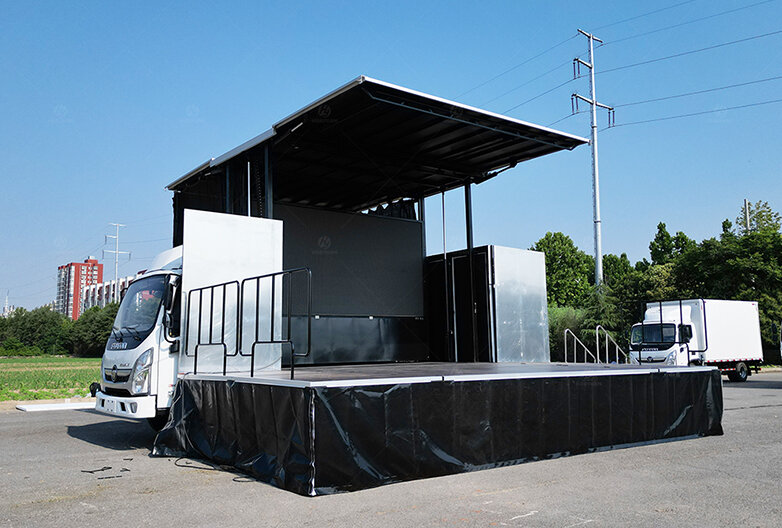

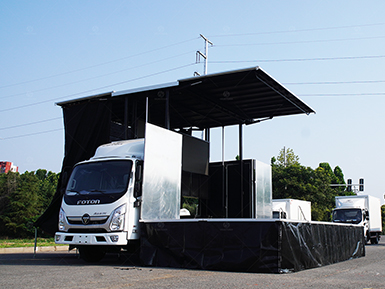

The LED screen rises together with the roof and flips down to the display angle after reaching position.
The screen movement is integrated into the deployment process, reducing on-site installation steps.
| Brand | Dongfeng, Foton, Isuzu (Optional) | - |
| Drive mode | 4×2 | - |
| Engine power | 141HP | - |
| Fuel type | Diesel / Gasoline | - |
| Emission standard | Euro II to Euro VI (optional) | - |
| Steering direction | Left/Right (optional) | - |
| Curb weight | 5400 kg | 11905 lb |
| Total mass | 6495 kg | 14319 lb |
| Tyre specification/quantity | 7.00R16/6+1 | - |
| Overall vehicle dimensions (LxWxH) | 5.99 m x 2.05 m x 2.99 m | 19'65" × 6'73" × 9'81" |
| Length & Depth | 6.8 m x 8m | 22'31" × 26'25" |
| Height from Ground | 1.1m | 3'61" |
| Load capacity | 400 kg/m² | 82 lb/ft² |
| Surface material | Birch anti-slip laminated board | - |
| Control system | Wireless remote + push button switch | - |
| Setup | 1-2 people/30 minutes | - |
| Wind resistance | with windwalls | 55 mph 89km/h |
| without windwalls | 65 mph 105km/h |
| Length & Depth | 6.8 m x 8 m | 22'31" × 26'25" |
| Stage to roof height | 3.3m | 10'83" |
| Floor to roof height | 4.4m | 14'44" |
| With Banner height | 5.6 m | 18'37" |
| Surface material | Fiberglass Honeycomb Panel | - |
| Lighting truss load capacity | 1400 kg | 3086 lb |
| Speaker rack load capacity | 350 kg/each | 771 lb/each |
| Top signal cable | 2-channel output | - |
| Stage lighting socket | 12-channel | - |
Designed for 1–2 operators, the stage can complete the changeover from transport mode to stage-ready status in about 30 minutes.
The full process is hydraulically driven and supports remote-control operation.
The 6.8 × 8 m stage deck, about 54 m², covers the common scale required for community events and small performances.
The deck area also makes it easier to arrange lighting and audio equipment.
The LED screen rises together with the roof and flips down into position.
The screen movement is integrated into the deployment process, reducing on-site installation and secondary adjustment.
Chassis brand, emission standard, steering position and fuel type are confirmed according to destination-market requirements and the selected vehicle configuration.
External power connection is supported. A generator solution can also be selected according to project needs.
The power supply route is confirmed in advance during the solution stage.
For projects using a locally sourced chassis, a stage-body-only solution can be evaluated according to the confirmed chassis dimensions and installation conditions. HUAYUAN can provide the corresponding installation guidance and connection details.

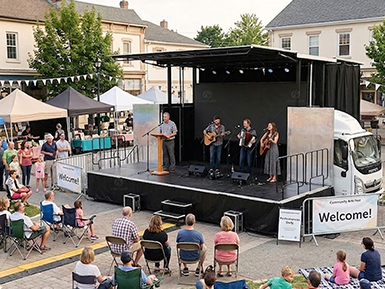

The approx. 54 m² stage deck is suitable for small and mid-size events such as community square activities, making it easier to divide the hosting area and performance area.
A small team can complete setup in a relatively short time and move into equipment arrangement.

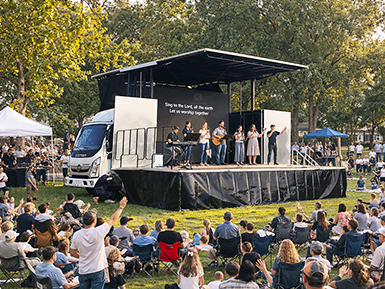

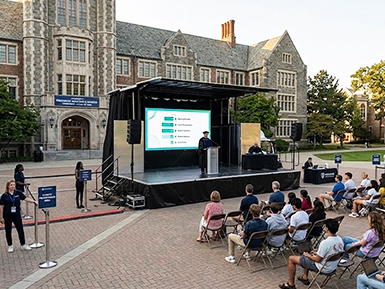

Suitable for campus scenarios with short time windows, such as orientation events and graduation season activities.
The setup rhythm is easier to control, and the LED screen can be used for program reminders and visual content display.
Suitable for locations with continuous pedestrian flow, where stable visual and audio output is required.
Power can be connected to an external source, or a generator solution can be selected.

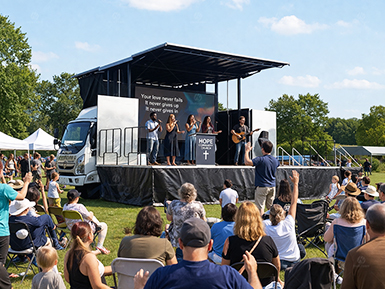

Suitable for outdoor gathering activities. The stage size makes it easier to organize hosting, choir performance, and program flow.
Lighting and audio can be selected according to the project, and the configuration scope can be confirmed in advance.
