Based on the stage structure of S455, S455S directly integrates the power generation system and LED display system into the stage body configuration. This significantly reduces dependence on external supporting conditions during transport, deployment, and use.
With this specification, the power supply and screen display are no longer temporarily coordinated as independent systems. They are deployed together with the stage structure, reducing uncertain factors in the on-site layout process.
When a project needs to quickly complete stage deployment, power supply, and visual presentation after arrival, and does not want to arrange an external generator or independent screen system separately, S455S is more aligned with this execution logic.

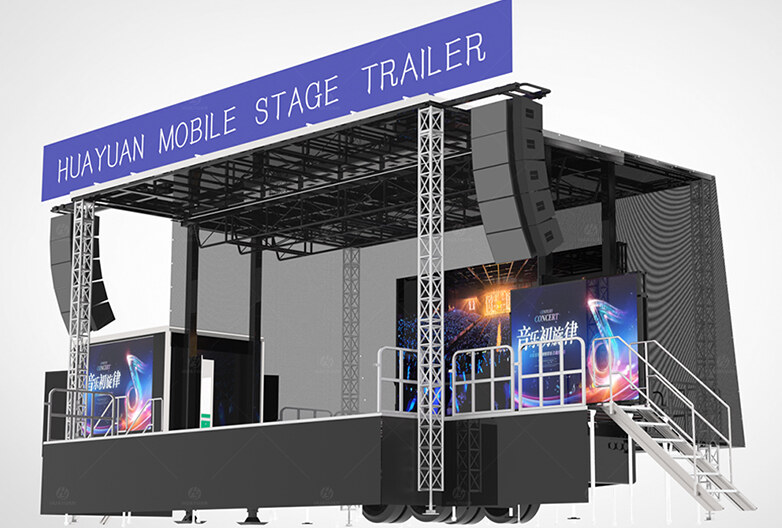

S455S is based on a 13 m semi-trailer body. An independent generator room is arranged at the front, and the onboard power supply covers the hydraulic system, LED display screens, stage lighting, and audio system.Visual presentation is supported through dual LED screens at the front and rear.

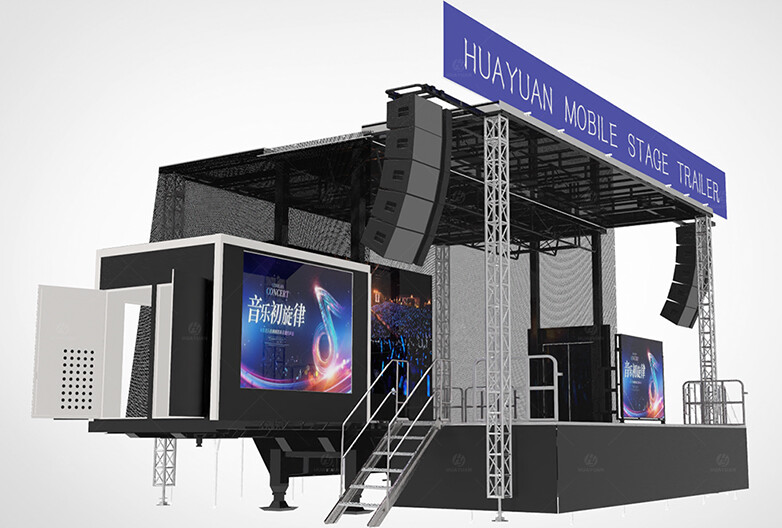

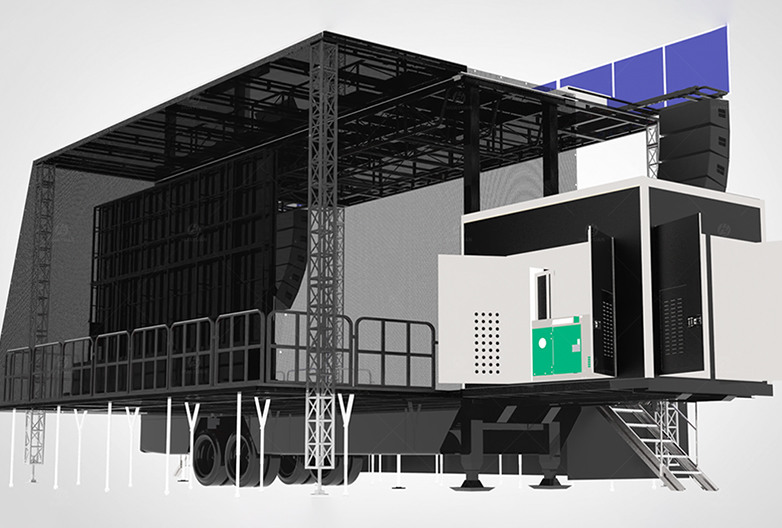

S455S integrates an independent generator room at the front of the trailer body.

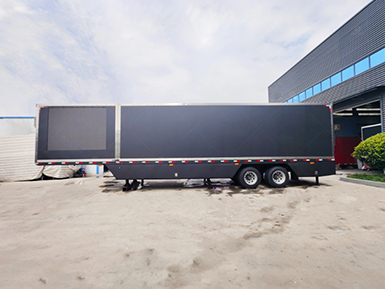

In transport mode, it keeps the exterior form of a semi-trailer. The stage and roof systems are retracted and locked inside the vehicle body.
In the closed state, the LED screen integrated on the outside of the generator room can display video content during driving when powered.

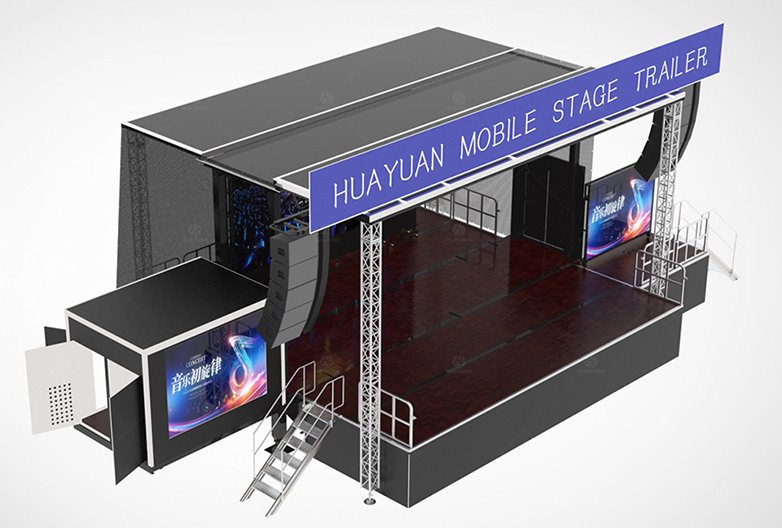

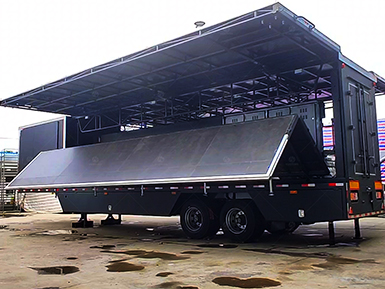

Hydraulic remote control drives the folding stage and the left and right wing panels to deploy.

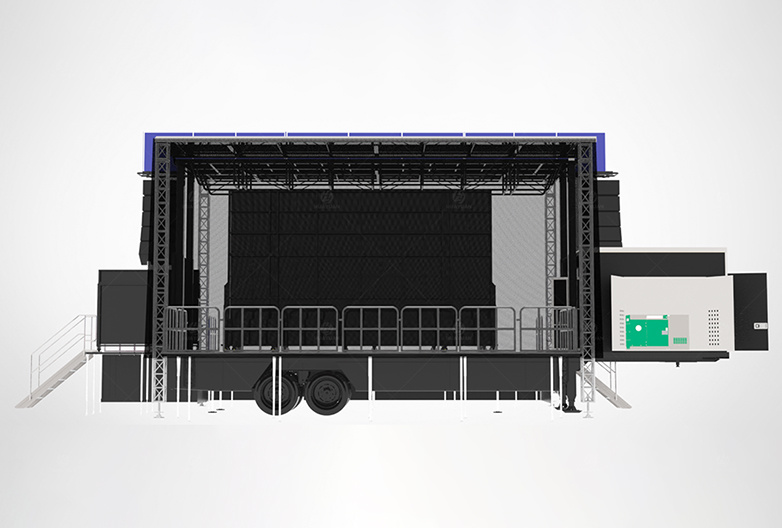

After deployment is completed, the structure is locked, forming the usable stage area.
The key point of the deployment process is the coordination between the stage deck, wing panels, and trailer body structure.
The roof is lifted to the working position by the hydraulic system.

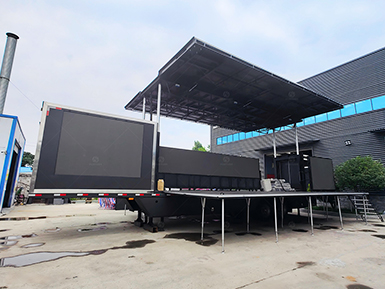

The height from the stage deck to the roof is 4.7 m.

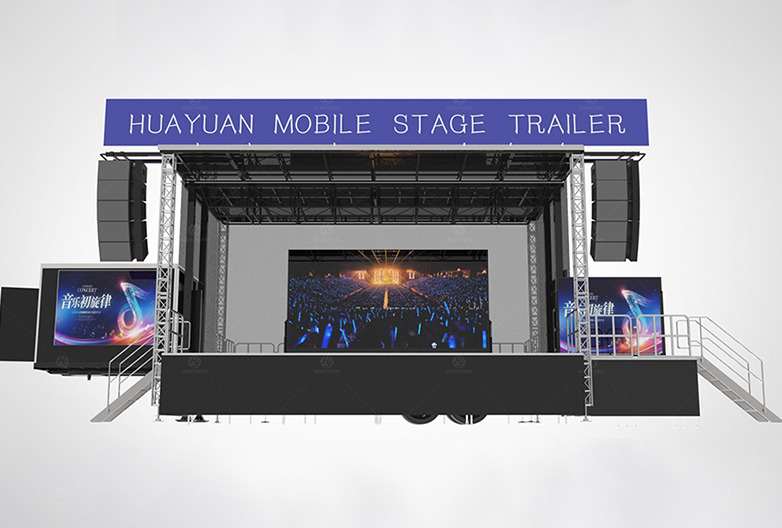

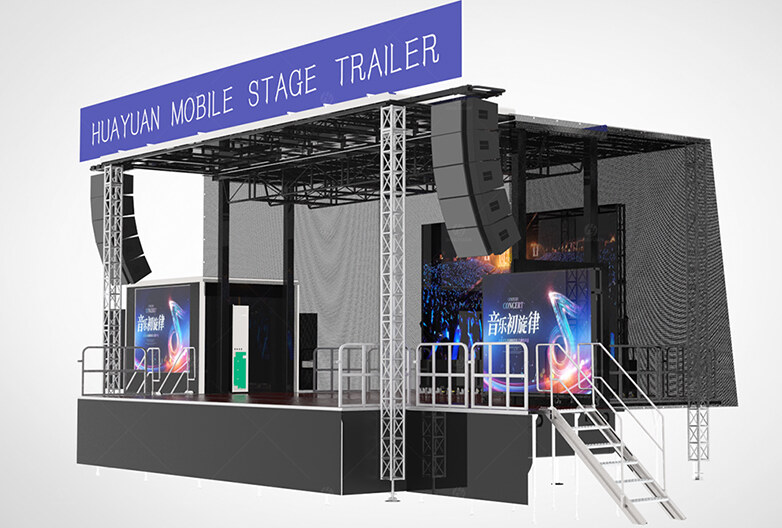

After deployment, the front integrated LED screen and the rear push-out LED screen move into working positions, forming two visual output areas at the front and rear.

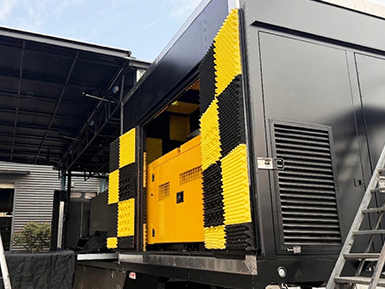

S455S is equipped with an independent power generation system. It can provide power support for the hydraulic system, LED display screens, stage lighting, and audio equipment.
During on-site operation, dependence on external power is lower, making unified equipment power supply and layout easier.
| Length | 13.6 m | 44'62" |
| Width | 2.53 m | 8'3" |
| Height | 4.05 m | 13'29" |
| Curb weight | 18500kg | 40785 lb |
| Total mass | 30000kg | 66139 lb |
| Axle/suspension | 2 Bridge/plate spring | - |
| Tyre | 8+1 | - |
| Length & Depth | 9.27m x 8.78m | 30'41"×28'81" |
| Height from Ground | 1.5 m | 4'92" |
| Load capacity | 650 kg/m² | 133lb/ft² |
| LED Screen | 2.56 m x 1.92 m*2 | 8'4"×6'3" *2 |
| Surface material | Birch hexagonal hemp anti-slip coating board | - |
| Control system | Wireless remote control + button switch | - |
| Setup | 3 people/60 minutes | - |
| Wind resistance | with windwalls | 62mph 100km/h |
| without windwalls | 71mph 115km/h |
| Length & Depth | 10 m x 7.48 m | 32'81"×24'54" |
| Stage to roof height | 4.7 m | 15'42" |
| Floor to roof height | 6.2 m | 20'34" |
| With Banner height | 7.4m | 24'28" |
| Surface material | FRP honeycomb panel | - |
| Lighting truss load capacity | 3400 kg | 7496 lb |
| Speaker rack load capacity | 900 kg/each | 1984 lb /each |
| Top signal cable | Route 2 | - |
| Stage lighting socket | Route 24 | - |
The power generation system is integrated with the stage structure, avoiding the need to separately plan power equipment placement and cable routing on site.
The LED display system is organized together with stage transport and deployment, reducing the coordination and management work required by an independent screen system.
The stage, power supply, and video system are deployed within the same structural system, making on-site organization more centralized.
The basic stage system can be set up without additionally introducing an external generator or independent screen structure.
With fewer separate systems, the on-site operating sequence and crew task division become easier to manage.
For projects with clear requirements for on-site organization, time control, and system stability, it is easier to form a stable execution process.

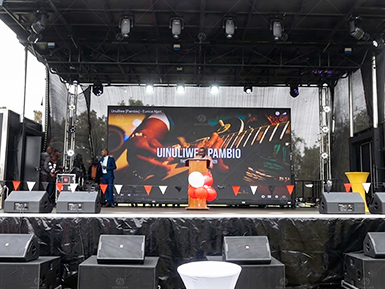

Suitable for city events, public communication, theme launches, and on-site gatherings.
It is designed for outdoor projects that need the main stage and main screen to present content together.

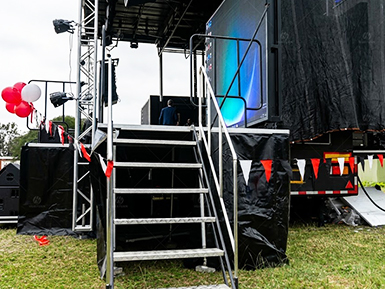

Suitable for brand exposure, product promotion, marketing activities, and on-site display projects.
It can support guest arrival, host speeches, and brand content presentation.

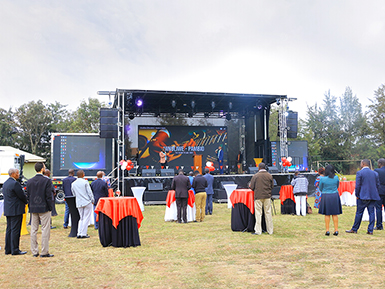

Suitable for music performances, festival celebrations, community events, and open-air venue activities.
It is designed for projects that need to organize centralized audience viewing and stage presentation.

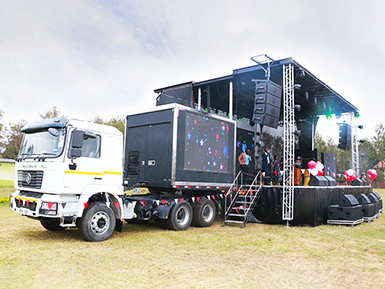

Suitable for multi-stop execution, temporary event venues, and outdoor promotional projects.
It is commonly used for event tasks that require phased deployment, cross-regional scheduling, and on-site arrangement.
If you want to get help quickly, please fill in the online contact form on our website and our customer service team will contact you within 24 hours. We look forward to working with you to provide the perfect mobile stage solution for your event!
