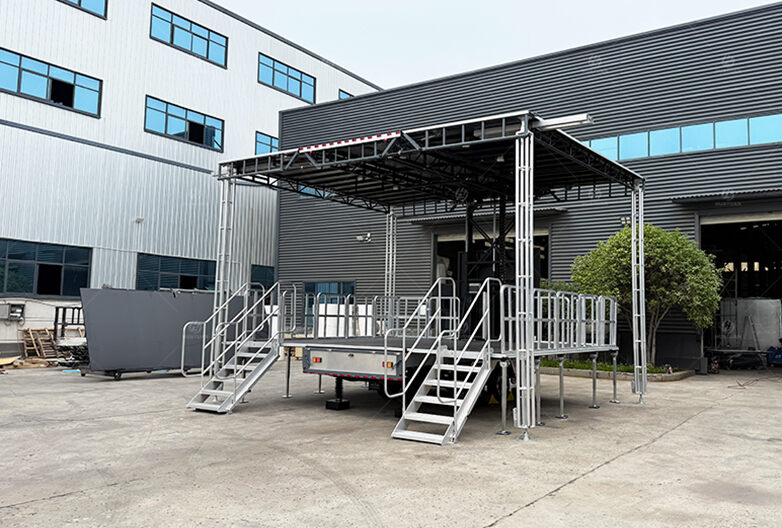

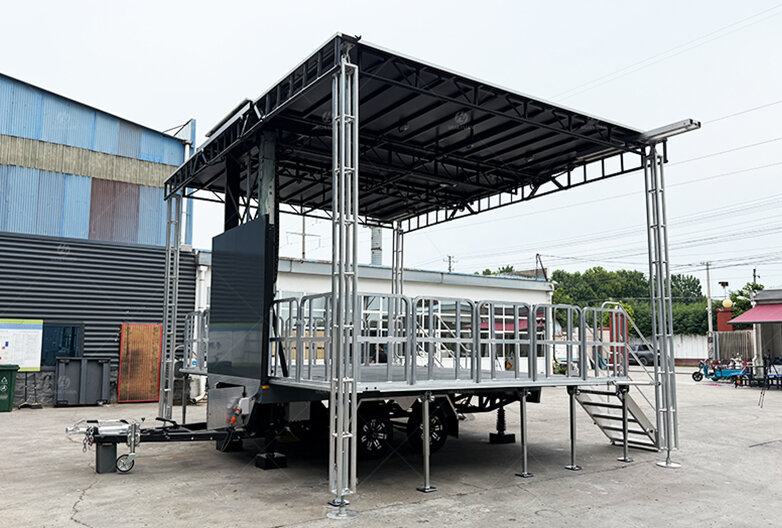

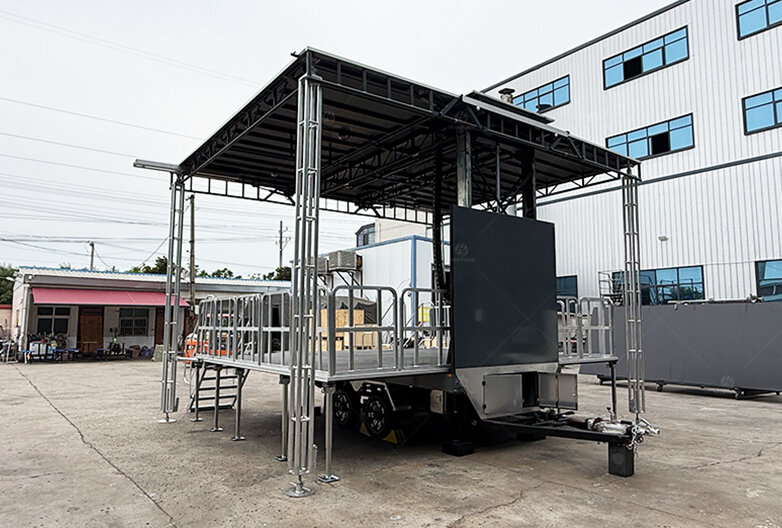

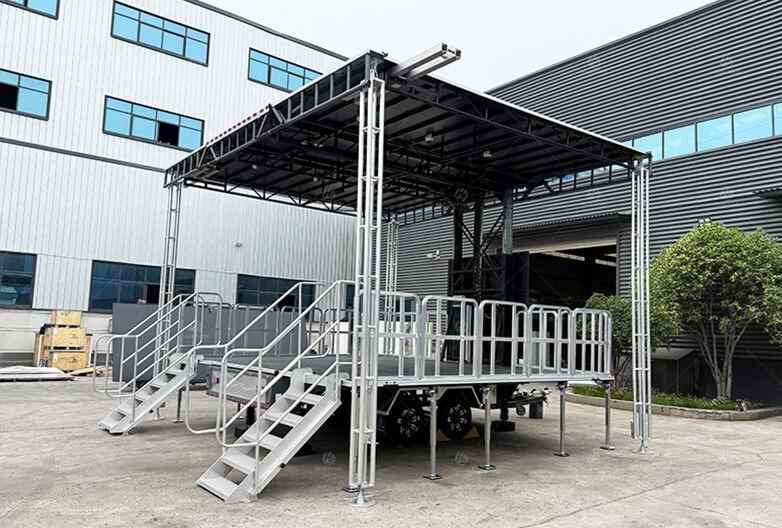

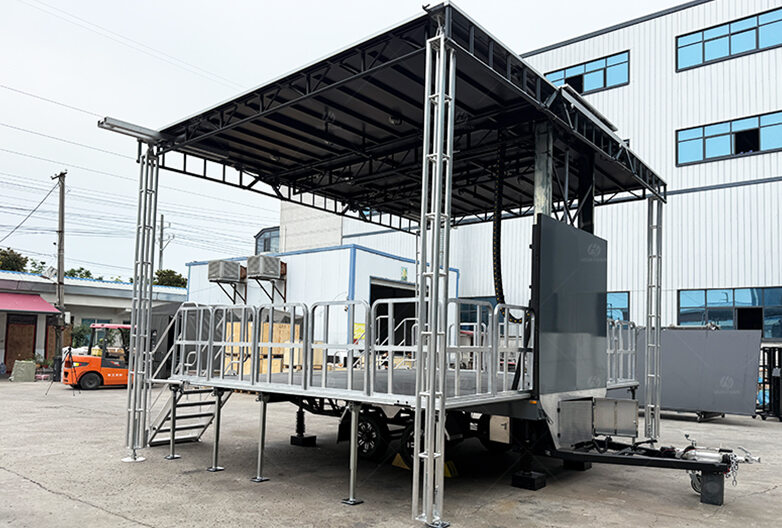

ST180 is a compact mobile stage trailer designed for community events, school performances, promotional activities, and other small to mid-size event applications. Its compact stage configuration and towable structure make transportation, site access, and frequent relocation more flexible.
The integrated stage structure is designed to simplify on-site deployment while supporting practical lighting, audio, and event equipment configurations according to project requirements.
For projects requiring greater energy independence, the ST180 can also be upgraded with a solar power generation system, providing an additional power solution for outdoor events and locations where external power access may be limited.
With flexible towing, practical deployment, customizable equipment configurations, and an optional solar power solution, the ST180 provides a versatile mobile stage platform for different event environments.

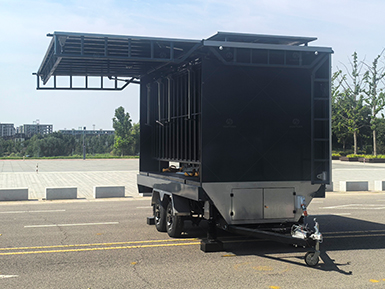

ST180 uses a hydraulic system to complete stage deployment and retraction. During deployment, the movement is driven by hydraulic actuators.
At the structural design stage, this model integrates the deployment movement and stage forming process into one system, reducing additional handling steps on site.

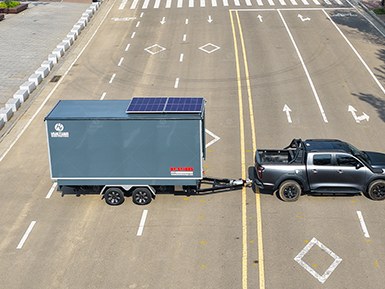

ST180 stores the stage body, roof, and deployment mechanism within the vehicle body.
In transport mode, it keeps a compact exterior form, making road transfer and on-site positioning easier.
The main mechanical movements for stage opening and closing are handled by the hydraulic system.
The deployment sequence is already defined during the structural design stage. On site, the main opening and closing actions do not rely on extensive manual work.

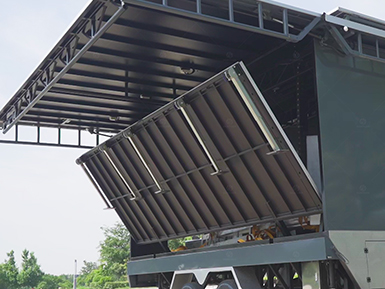

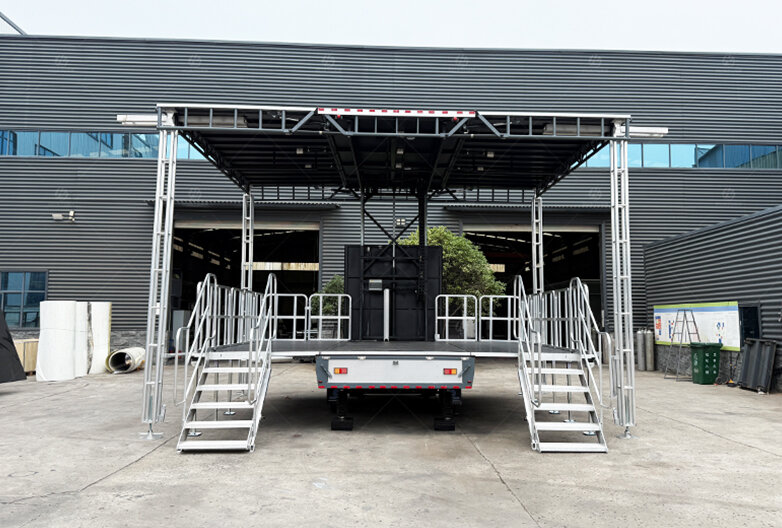

The stage body consists of fixed structures and deployable structures.

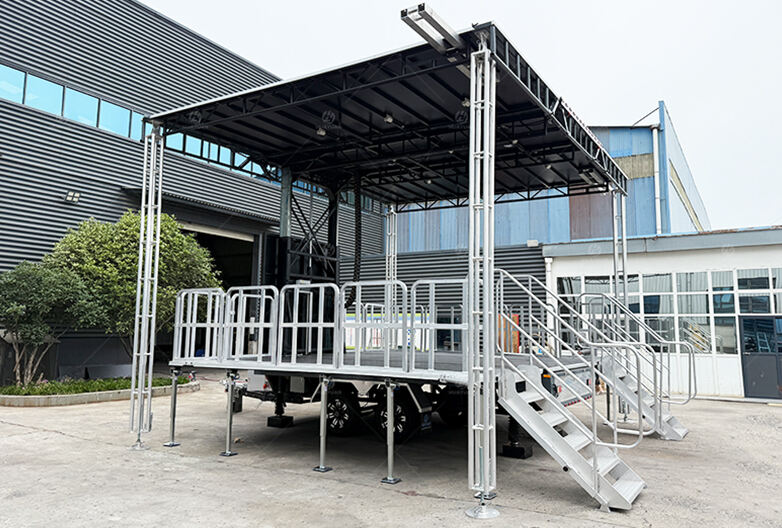

After deployment, it forms a continuous stage deck. Hosting, performance, and regular equipment placement are all supported on the same load-bearing base.

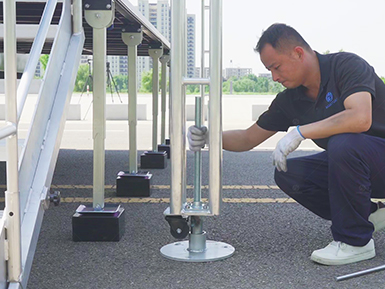

After the stage is deployed, the load relationship of the deck and the support positions are established at the same time.
The main load-bearing base is already matched in advance, allowing the site to move directly into personnel positioning and regular equipment layout.
| Length | 1.13 m + 5.4 m | 3'71" + 17'72" |
| Width | 2.23 m | 7'32" |
| Height | 3.1 m | 10'17" |
| Curb weight | 3580kg | 7892 lb |
| Total mass | 4000kg | 8818 lb |
| Axle/suspension | 2 Bridge/plate spring | - |
| Tyre | 4 | - |
| Length & Depth | 6 m x 4.71 m | 19'69" × 15'45" |
| Height from Ground | 1 m | 3'28" |
| Load capacity | 296 kg/m² | 61 lb/ft² |
| Surface material | Birch anti-slip laminated board | - |
| Control system | Wireless remote + push button switch | - |
| Setup | 1 people/30 minutes | - |
| Wind resistance | with windwalls | 62 mph 100 km/h |
| without windwalls | 71 mph 115km/h |
| Length & Depth | 6.67 m x 5.4 m | 21'88" × 17'72" |
| Stage to roof height | 3.5 m | 11'48" |
| Floor to roof height | 4.5 m | 14'76" |
| With Banner height | 5.7 m | 18'7" |
| Surface material | Fiberglass Honeycomb Panel | - |
| Lighting truss load capacity | 1100 kg | 2425 lb |
| Speaker rack load capacity | 180 kg/each | 396 lb/each |
| Top signal cable | 2-channel output | - |
| Stage lighting socket | 24-channel | - |
In community events, park activities, and similar scenarios, roads are often narrow, turning space is limited, and the site may include large areas of landscaping and fixed facilities.
ST180 can enter and deploy more easily in these locations, without being ruled out at the access stage because of site conditions.
ST180 is commonly used for clearly defined small-scale projects, such as community events and park activities.
In these scenarios, the stage only needs to support the event organization itself. It does not need to take on the structural role of a large performance stage.
ST180 is suitable for daily use and management by individuals or small teams.
In actual delivery, this model is often used as the main stage equipment by start-up rental companies or individual users.
The deployment and use method of ST180 allows one person to complete daily operation.
This makes it more suitable for projects with limited staffing and for long-term use by small teams.
The lightweight design of ST180 keeps the complete vehicle weight within 3.5 tons.
This weight range is easier to match with common towing conditions in the Australian and European markets, and it also supports local trailer management and registration requirements.
In the actual market, ST180 is more commonly selected by community organizations or individual users.
Its structure and operation method are highly aligned with the event frequency and execution style of these users.

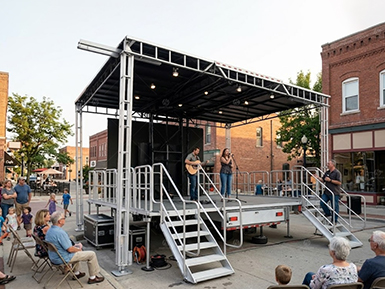

Suitable for basic performance scenarios such as community squares and residential activity areas.
The stage body is smaller, making quick positioning and lightweight deployment easier.

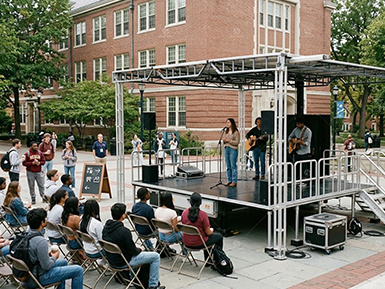

Suitable for orientation events, club showcases, and small campus performances.
When the event time window is short, stage setup and on-site arrangement can be completed more easily.

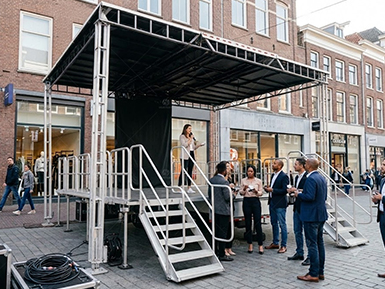

Suitable for storefront shows, street promotions, and basic interactive activities.
The stage workflow is more flexible and easier to organize within limited site space.

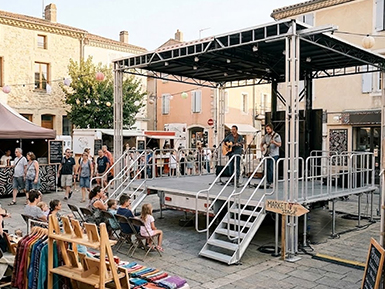

Suitable for small-town squares, weekend markets, and open street events.
It can serve as a small event center, supporting hosting, performances, and on-site gathering.
