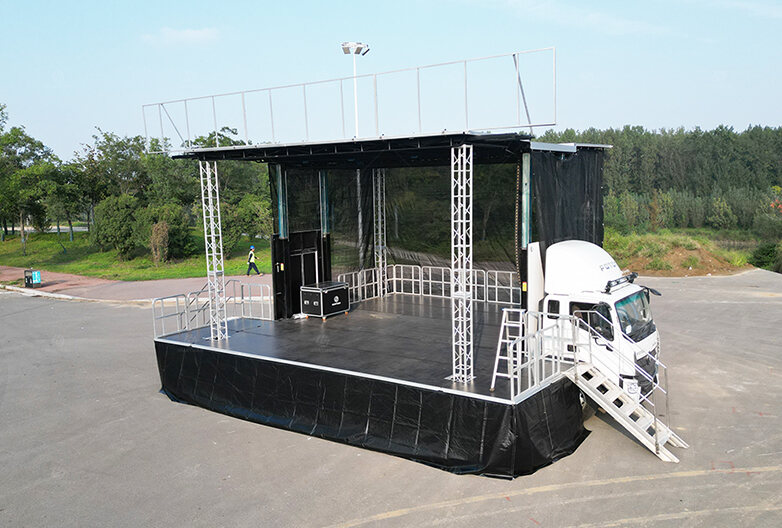

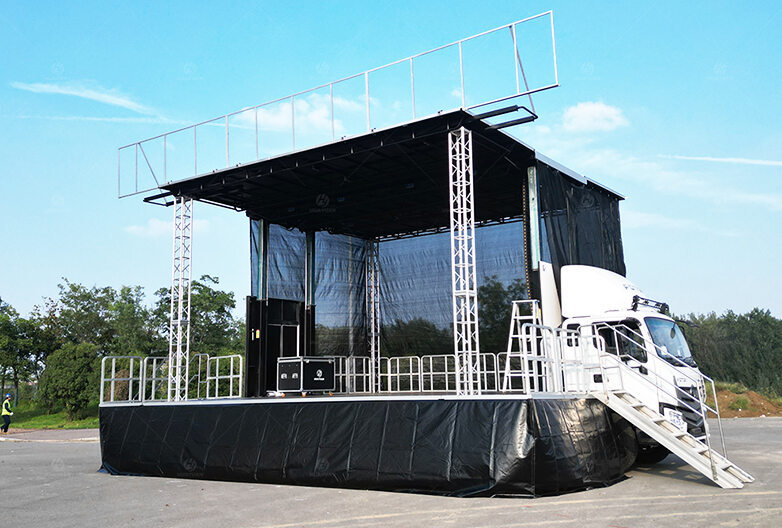

After deployment, the stage size is 10.5 × 8.78 m, about 92 m², suitable for mid-size stage configurations for festival events and religious activities.
The LED screen rises together with the roof and flips down into position. LED screens can also be added on both sides of the stage to expand the visual coverage area.
The height from the stage deck to the roof is 4.5 m, leaving space for lighting and line array audio layout.
Stage deployment and retraction are driven by the hydraulic system, with key operations completed by remote control.
Deployment is organized with 3–4 people, taking about 40 minutes to enter equipment setup.

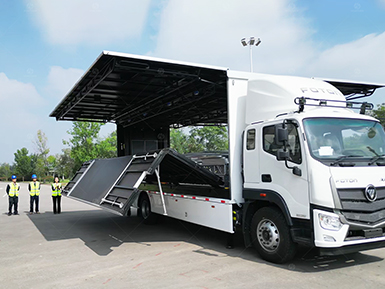

The double-folding main stage works together with the dual wing panels for deployment, with opening and closing completed by hydraulic remote control.
The roof is designed as a lighting truss structure to support lighting arrangement. The LED screen rises with the roof and flips down into position. Project-based stage extension and screen solutions are also supported.

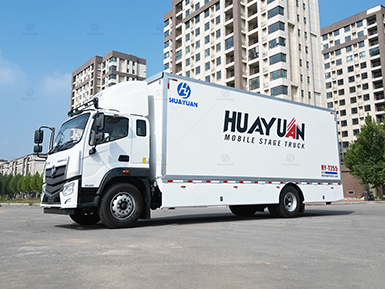

The main stage uses a double-folding retraction method. The left and right wing panels fold back and lock inside the vehicle body.
Key moving components are locked during transport, reducing structural movement during relocation.

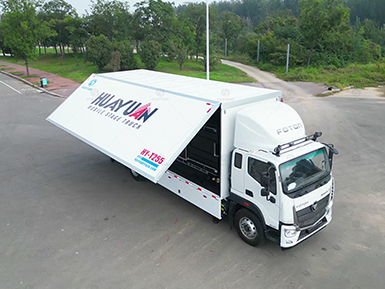

Deployment and retraction are driven by the hydraulic system, with the main movements completed by remote control.
The hydraulic movements include coordinated control of stage deployment, support positioning, and roof lifting. On-site crew only need to follow the operating instructions.

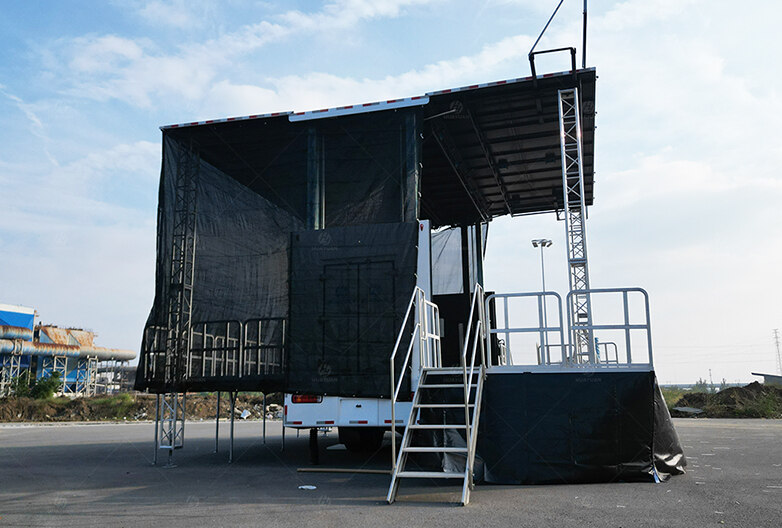

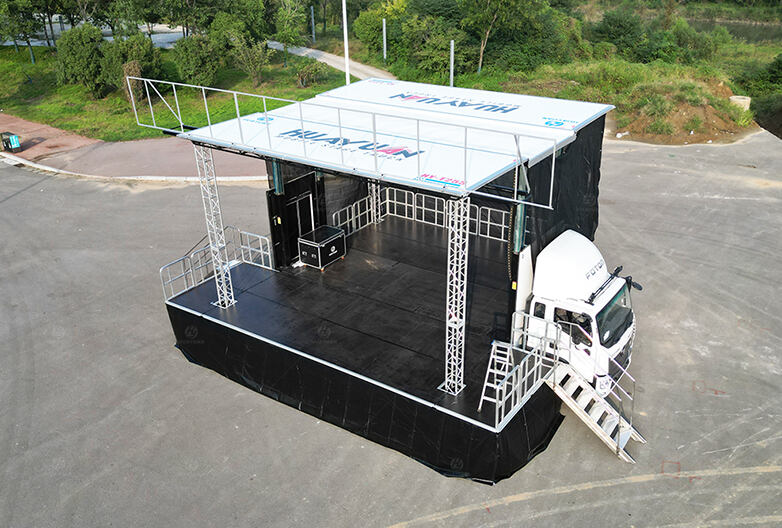

The main stage unfolds from two folding platform sections, while the left and right wing panels open outward to form the stage area.
After reaching position, the structure is fixed by mechanical locking and support structures, making personnel and equipment layout more stable.

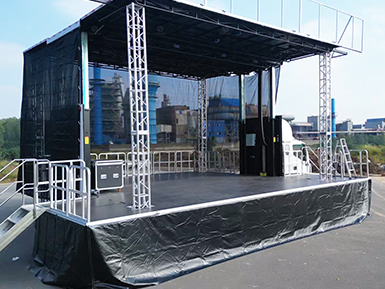

The roof uses a lighting truss structure, providing fixture installation positions and suspension points.
The lighting system can be installed according to the project plan, making fixture hanging and on-site adjustment easier.
| Brand | Jiefang, Foton, Isuzu (Optional) | - |
| Drive mode | 4×2 /6×4可选 | - |
| Engine power | 240HP | - |
| Fuel type | Diesel fuel | - |
| Emission standard | Euro II - Euro VI (optional) | - |
| Steering direction | Left/Right (optional) | - |
| Curb weight | 14600 kg | 32187 lb |
| Total mass | 22000 kg | 48501 lb |
| Tyre specification/quantity | 11R22.5/6+1 | - |
| Overall vehicle dimensions (LxWxH) | 10 m x 2.5m x3.95 m | 32'81" × 8'2" × 12'96" |
| Length & Depth | 10.5 m x8.78 m | 34'45" × 28'81" |
| Height from Ground | 1.5m | 4'92" |
| Load capacity | 500 kg/m² | 102 lb/ft² |
| Surface material | Birch anti-slip laminated board | - |
| Control system | Wireless remote + push button switch | - |
| Setup | 3-4 people/40 minutes | - |
| Wind resistance | with windwalls | 62 mph 100 km/h |
| without windwalls | 71 mph 115 km/h |
| Length & Depth | 7.8 m x 7.475 m | 25'59" × 24'52" |
| Stage to roof height | 4.5 m | 14'76" |
| Floor to roof height | 6 m | 19'69" |
| With Banner height | 6.95m | 22'8" |
| Surface material | Fiberglass Honeycomb Panel | - |
| Lighting truss load capacity | 2800 kg | 6172 lb |
| Speaker rack load capacity | 800 kg/each | 1763 lb/each |
| Top signal cable | 2-channel output | - |
| Stage lighting socket | 24-channel | - |
Within the mobile stage truck series, T255 uses an approximately 92 m² stage scale and expandable solution options to cover more event needs, keeping investment more focused.
10.5 × 8.78 m, about 92 m², suitable for festival events and religious activities, with more space for personnel and equipment layout.
Supports side extensions and 6 m T-stage options to meet the layout needs of events at different scales, subject to the confirmed project solution.
The height from the stage deck to the roof is 4.5 m, leaving operating space for lighting and line array audio installation and adjustment.
In addition to the basic main LED screen solution, extended LED screen options can be added according to the project to cover a wider audience area.
3–4 people can enter equipment setup in about 40 minutes. The system is hydraulically driven and supports remote-control operation.

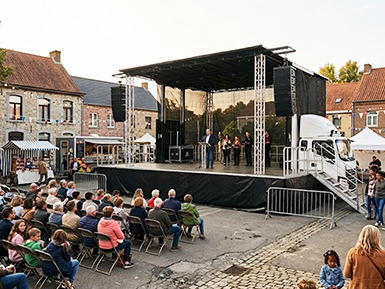

Suitable for annual events in small-town squares. The stage system can organize hosting, performances, and audience viewing areas at the same time, making it suitable for festivals with a more complete event flow.

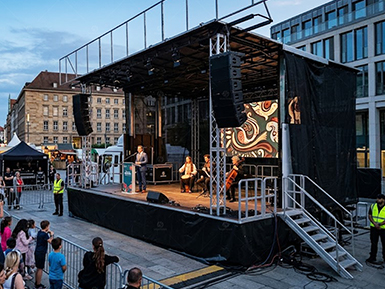

Suitable for formal festival events in open city squares. The main stage can support opening ceremonies, program performances, and on-site visual presentation, helping form a clearer event center.

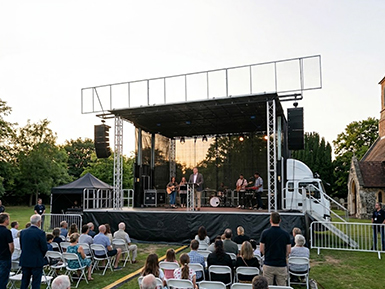

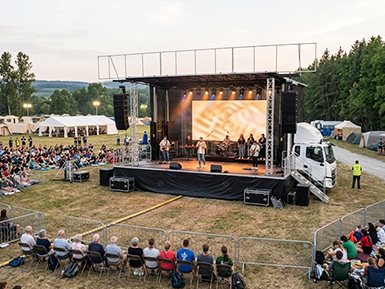

Suitable for outdoor events that combine preaching, worship music, and gathering. The stage space can support basic lighting, sound reinforcement, and on-site program layout.
Suitable for staged gathering events in open venues. The mid-size stage configuration makes it easier to organize worship, preaching, and on-site equipment layout, and is also suitable for medium-size audience coverage.
