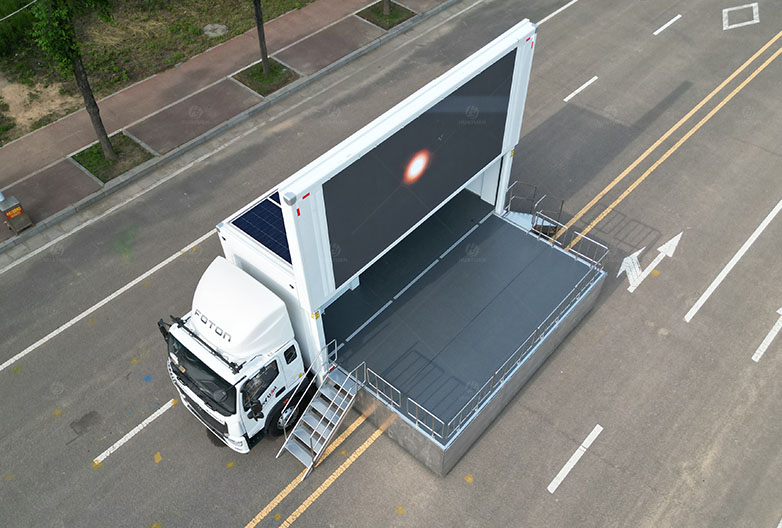

LR245S is designed for mobile events that require both integrated event functions and more flexible on-site power management. It combines a large outdoor LED display, hydraulic stage, rooftop solar generation, LiFePO4 battery storage, automatic generator backup, media control and professional audio within one mobile platform.
The vehicle can support roadshows, brand activations, public communication, mobile training and outdoor events while reducing dependence on continuous external power or generator operation. Its multi-source energy system coordinates solar generation, battery storage, external power and generator backup according to actual operating conditions.
Compared with a conventional roadshow truck focused mainly on display and stage deployment, LR245S adds an integrated energy layer to the mobile event platform, making it particularly suitable for projects involving repeated deployment, outdoor operation or locations where power availability may vary.
LR245S combines mobile event deployment with integrated solar and energy management systems.

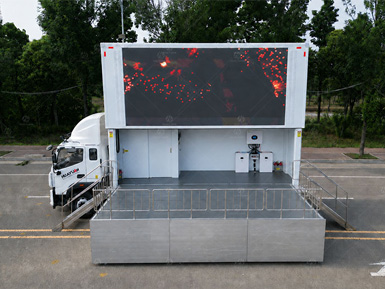

The 5440 × 2560 mm outdoor P4 LED display provides approximately 13.93 m² of visual area for advertising, public information and event content. Its elevated position creates a clear visual focus for outdoor audiences.

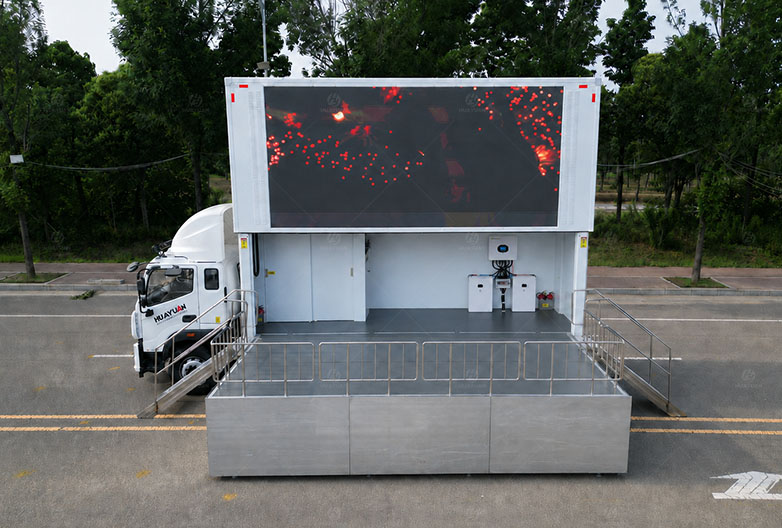

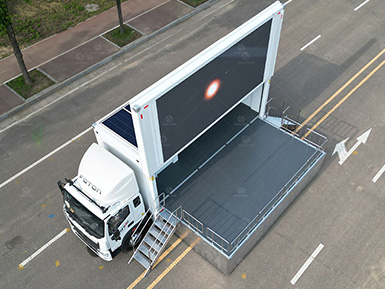

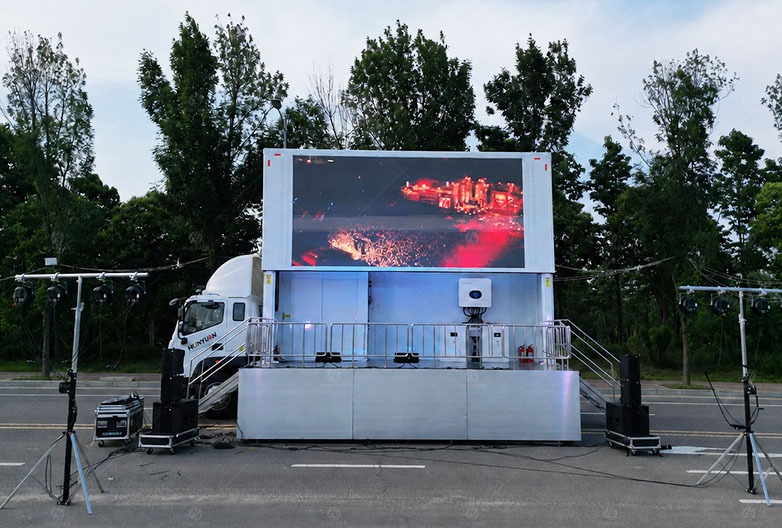

The two-section hydraulic stage expands to approximately 6000 × 5400 mm, providing an integrated working area for presentations, promotions, training and community events.

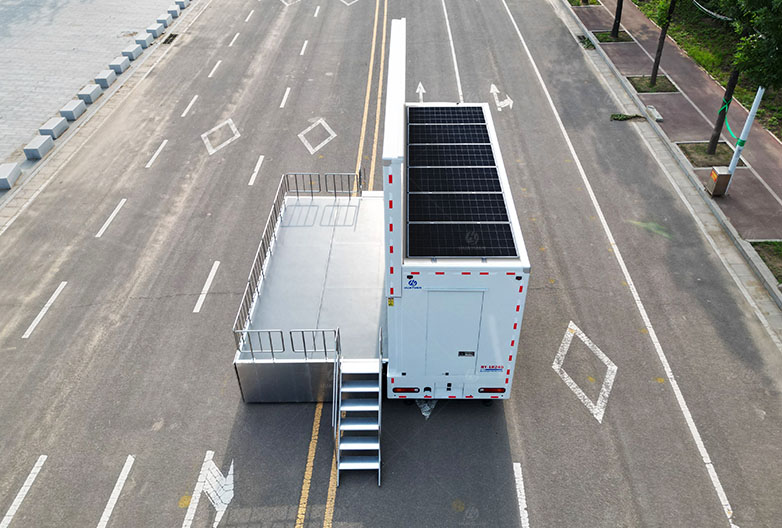

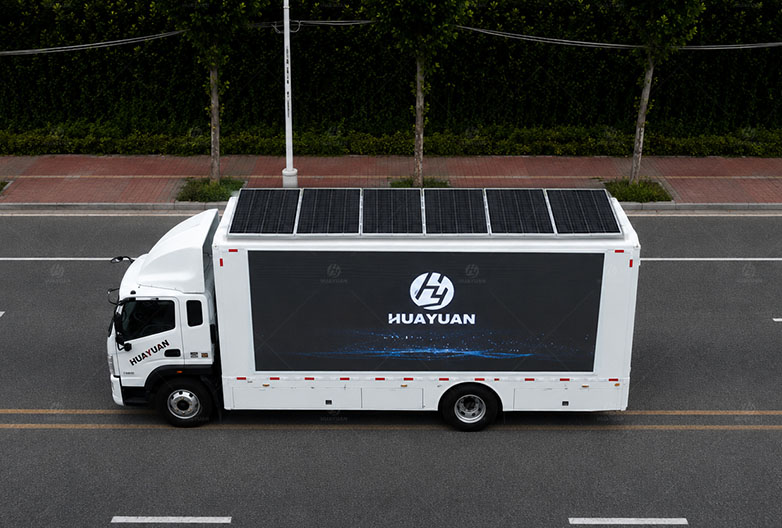

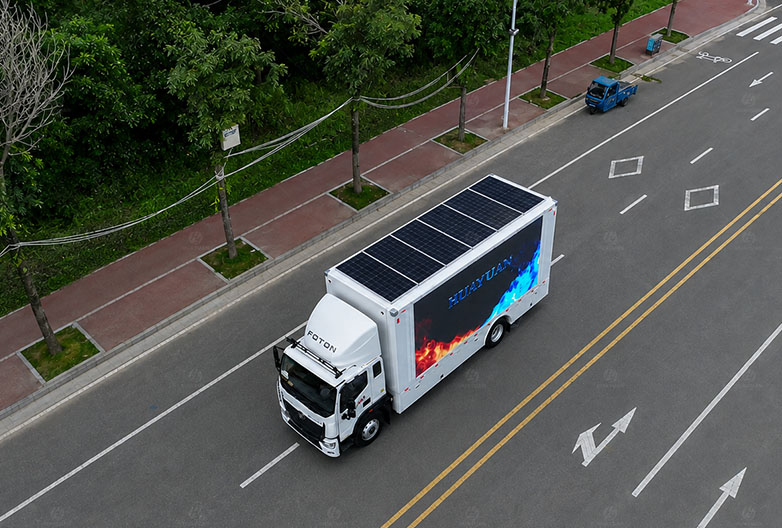

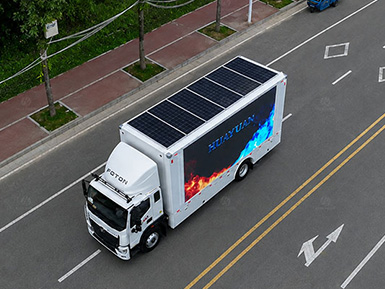

Six 680 W solar panels are integrated into the vehicle roof, providing 4.08 kW of installed solar capacity. The rooftop arrangement allows solar generation without adding separate ground-mounted equipment at the event site.

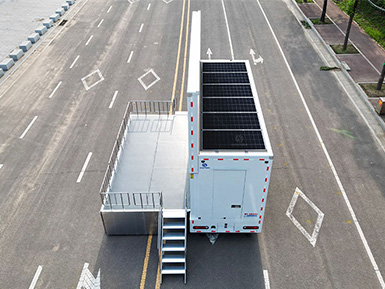

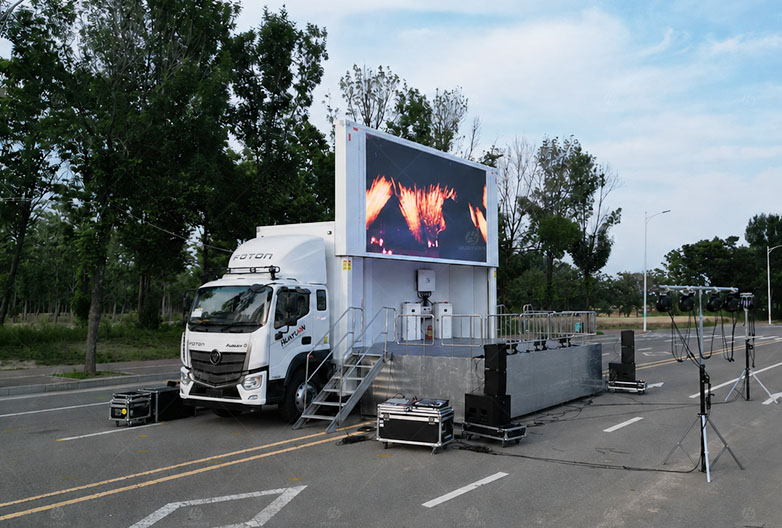

LR245S combines road transport and event deployment within one vehicle platform. After arrival, the LED display and hydraulic stage can be deployed to create a complete mobile presentation area while the onboard energy systems remain integrated within the vehicle.
| Overall dimensions | 6800mm×2500mm×4200mm | 22'4" × 8'2" × 13'9" |
| Total mass | - | - |
| Stage dimensions | 6000mm×5400mm | 19'8" × 17'9" |
| Truck chassis | Customizable
|
- |
| Wheelbase | - | - |
| Screen size | 5440mm×20560mm | 17'10" × 8'5" |
| Pixel pitch | P4 | - |
| Screen lifting | 2000mm | 6'7" |
| Expansion box (optional) | - | - |
| Setup | 1 people/20 minutes | - |
Rooftop solar generation and battery storage provide additional energy sources for the vehicle. Under suitable operating conditions, stored solar energy can help reduce unnecessary generator running time.
The combination of solar generation, battery storage and generator backup provides greater flexibility for outdoor locations where stable external power may not always be available.
LED display, hydraulic stage, media control and onboard energy systems are integrated into the same mobile platform, reducing the need to organize multiple separate systems at each event site.
When available solar and battery energy cannot meet operating demand, the integrated generator can provide backup support, reducing the need for repeated manual power-source switching.
The integrated vehicle layout is well suited to roadshows and mobile campaigns that move between different locations, where both event equipment and power availability may change from site to site.
LED display, audio, media control, generator and supporting equipment can be configured according to project requirements, target applications and local operating conditions.

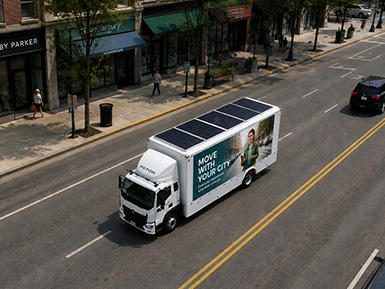

For mobile brand campaigns, LR245S combines large-format visual communication, event space and onboard power support in one vehicle, making it suitable for roadshows, product promotions and public-facing brand activities.

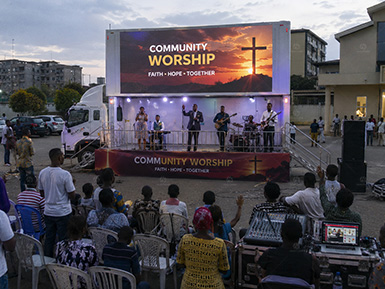

The integrated LED display, stage and audio system can support worship events, community gatherings and faith-based outreach where temporary outdoor event infrastructure is required.

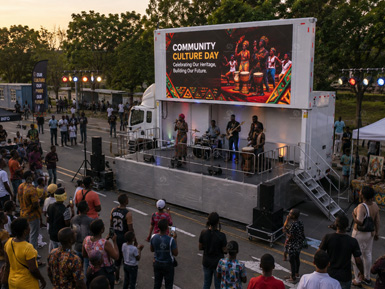

The expandable stage and large LED display provide a visible event platform for cultural performances, community programs and public activities in open outdoor spaces.

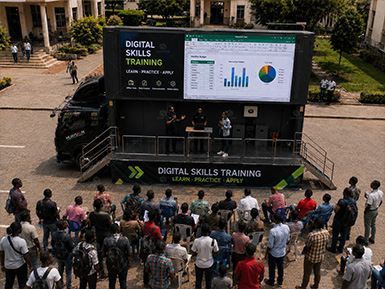

The LED display, stage, media control and onboard energy systems support mobile training, educational programs and information delivery across different locations.
