Mobile Stage Size Guide: How to Choose the Right Stage Space for Your Event

When choosing a mobile stage, many buyers start by comparing stage area. It is easy to assume that a bigger event simply needs a bigger stage.

In practice, stage size depends more on how the stage will be used.

A large event mainly used for speeches and LED display may have only a few people and limited equipment on stage. A smaller live band event may need more stage space for performers, instruments and other equipment.

Before comparing mobile stage models, it is better to first work out how the stage will be used and how much space the event actually needs.

1. Audience Size Does Not Directly Decide Stage Size

Audience size can show the scale of an event, but it does not directly tell you how large the stage should be.

For speeches, product launches or public events, the people on stage are often grouped in a smaller area, so the event may not need a very deep stage.

A live band needs space for performers, instruments and stage equipment. Both stage width and depth can become important. Dance, school and cultural performances may use less equipment, but they often need a clear and open performance area.

Instead of starting with the number of people in the audience, first consider:

How many people will be on stage at the same time?

What type of performance or activity will take place?

What large equipment needs to be placed on the stage?

How much room do performers need to move?

Once these points are clear, it becomes much easier to compare stage sizes.

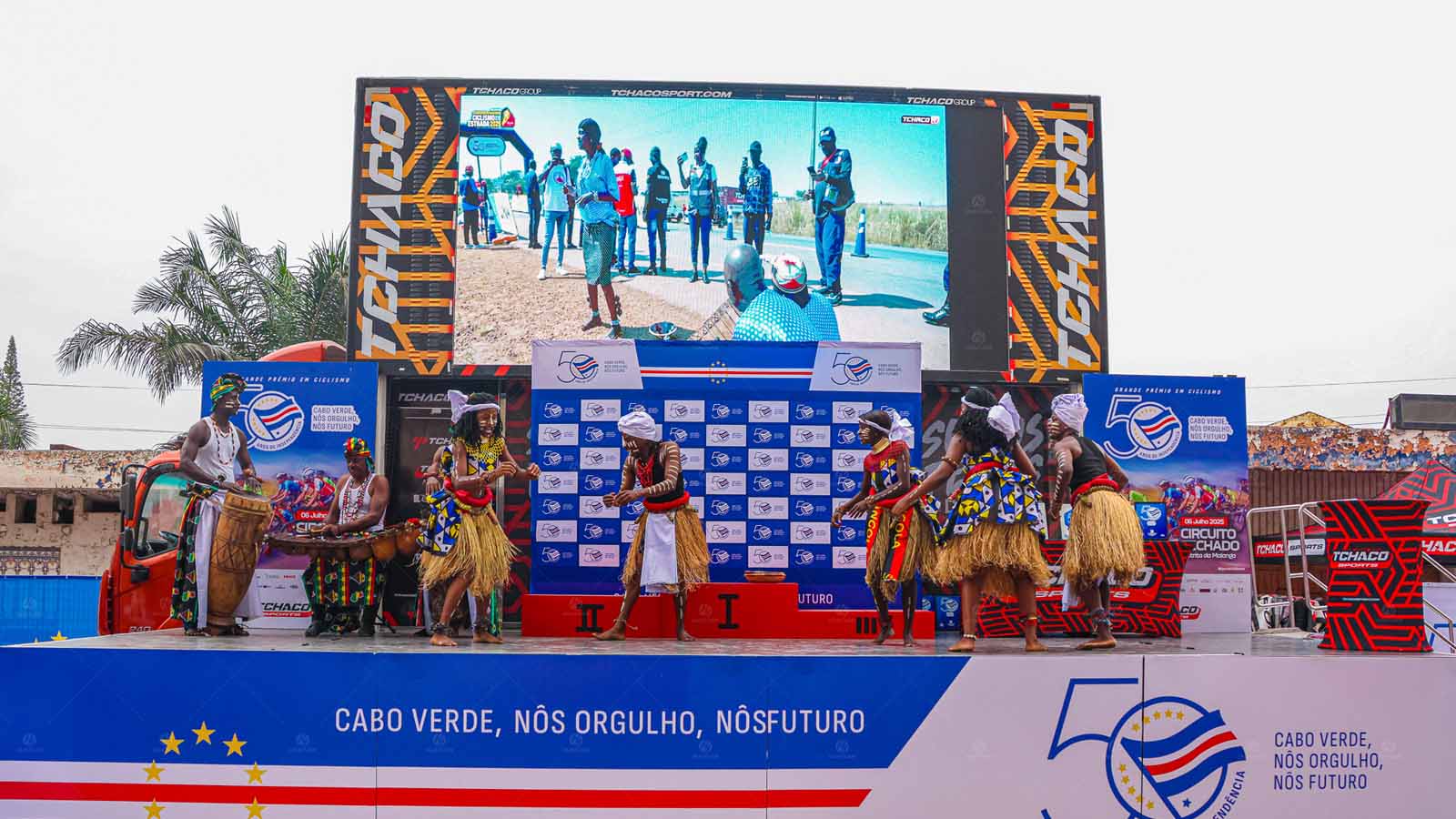

2. Total Stage Area Is Not the Same as Usable Performance Space

The Stage Size shown in a product specification tells you the dimensions of the fully opened stage. In actual use, however, not every part of that area will be available for performers.

Take a simple example.

An 8 m × 6 m stage has a total area of 48㎡. After the event layout is arranged, some space still needs to be left for equipment, stage access and necessary safety areas.

So instead of only asking:

“Is 48㎡ enough?”

a more useful question is:

“How much clear performance space will remain after the stage is set up?”

If the event plan is already known, a simple stage layout can help. It does not need to be a professional CAD drawing. Mark the main equipment, performance area and stage access points, and then compare this layout with the dimensions of different mobile stages.

This gives a much clearer picture than comparing square meters alone.



3. The Same Stage Area Can Have Different Width and Depth

For example, consider two stage layouts:

8 m × 6 m = 48㎡

12 m × 4 m = 48㎡

They have the same total area, but they do not provide the same layout.

A live band may need enough depth to arrange performers and equipment in front and rear positions. Dance and cultural performances often need a larger clear area. Speeches, product launches or events using a large background display may make better use of a wider stage.

When checking mobile stage specifications, do not look only at Stage Area. Also check:

Stage Width × Stage Depth

If you already know the size and position of the main equipment, you can work the other way around: estimate the width and depth you need first, and then look for a mobile stage close to those dimensions.

4. Equipment Installation Can Change the Available Stage Space

When choosing stage size, it is also important to know how the LED display, audio and lighting equipment will be installed.

For example, speakers installed on separate speaker wings do not take up the main performance area. An integrated LED display also uses stage space differently from an LED structure built directly on the stage.

So it is not enough to know how much equipment will be used. You also need to know where it will be installed.

For larger LED, lighting and audio systems, roof height, installation position and load requirements should also be checked after the basic stage size has been decided.



5. A Suitable Stage Still Needs Enough Space for the Vehicle

A mobile stage must first reach the event site as a vehicle.

This is especially important for larger stage trucks and semi-trailer stages. It is not enough to check whether the opened stage fits in the event area. The vehicle must also be able to enter the site, turn, park and open safely.

Before choosing a model, check:

Clear entrance width and height

Space for turning and reversing

Space on both sides for stage opening

Space required for support legs

Ground conditions

Nearby buildings, trees, power lines or other obstacles

Some venues have a large event area but a narrow entrance. Others have enough access for the vehicle but not enough side space to fully open the stage.

For larger mobile stages, transport dimensions and opened stage dimensions should always be checked together.

6. For Multi-Purpose Use, Think Beyond One Event

If the mobile stage will only be used for one fixed type of event, the size can be selected around a fairly clear stage layout.

Rental companies, event companies and touring teams usually have different needs. The same mobile stage may be used for a live band one week and a school show, brand event or community event the next.

In this case, choosing a stage that only just fits one current layout may limit its use later. Some extra room for equipment changes and performer movement can make the same stage suitable for more common event layouts.

This does not simply mean choosing the largest model. The important point is whether the stage width, depth and overall layout can work for the types of events you expect to handle.

Conclusion

A larger mobile stage is not always the better choice.

The right size should provide enough room for performers and equipment while still meeting transport and site setup requirements.

Decide how the stage will be used first, then decide how much space you need.
